THE GOOD, THE BAD, AND THE UGLY*
*built in the same person

Haroldo Gamal's High-Octane
Born in the sunny Brazilian's beaches,
this small beast was built following schematics from AX84
High Octane. Delivering near 6 watts
RMS, it performs one of the best tones I've hear. The schematics can
be found here.
|
|

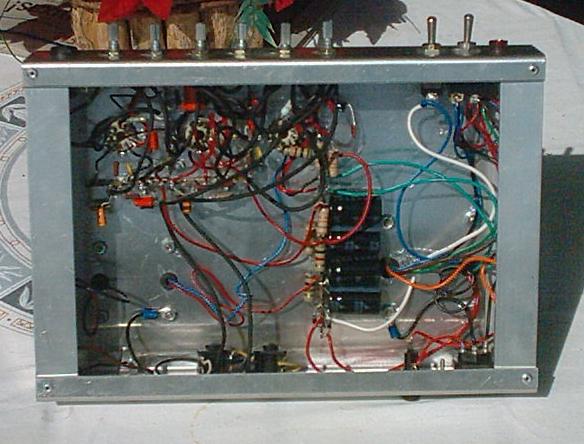

Below an inside view.
|

|
|

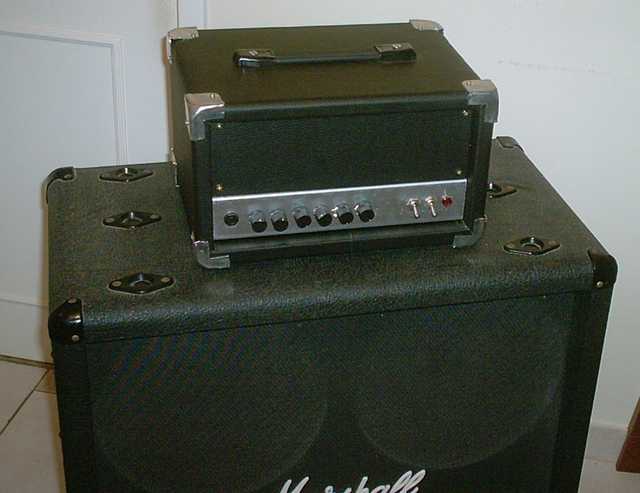

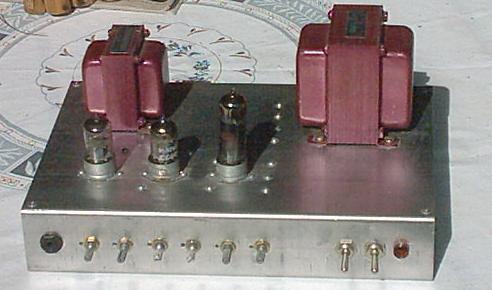

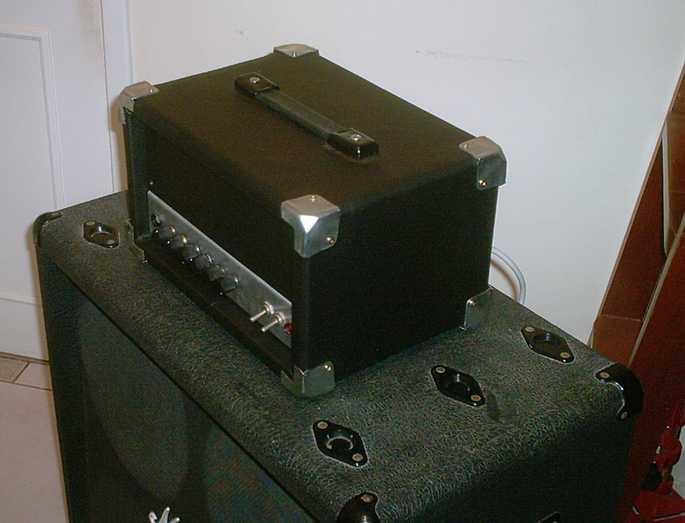

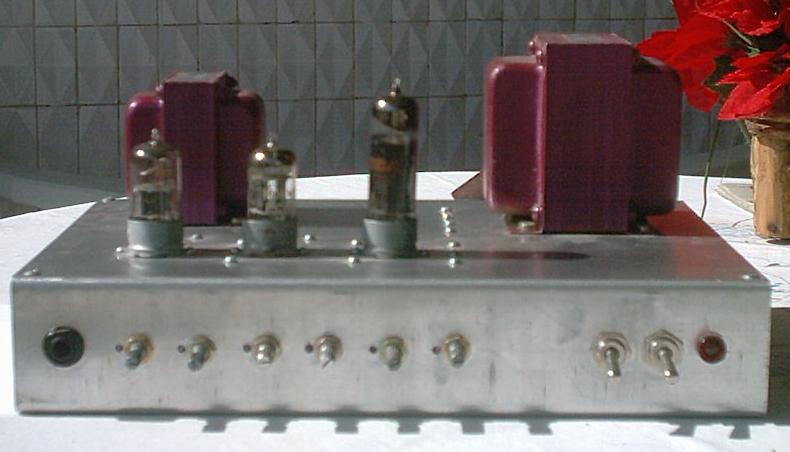

Front view. From left to right: input, gain 1, gain 2, bass, mid, treble,
master gain, stand-by switch, power switch and power indicator.
|

|
|

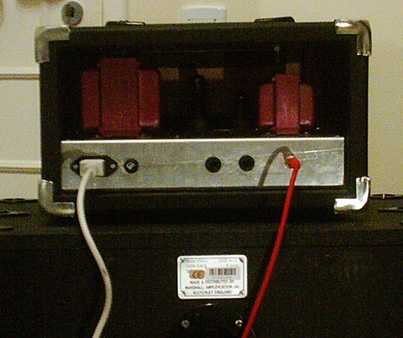

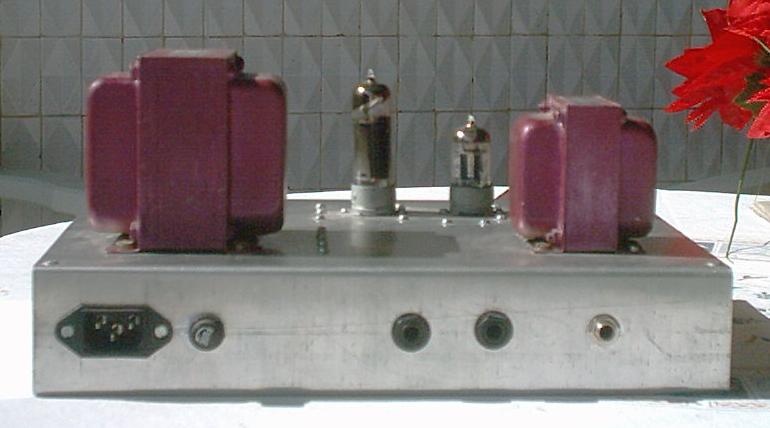

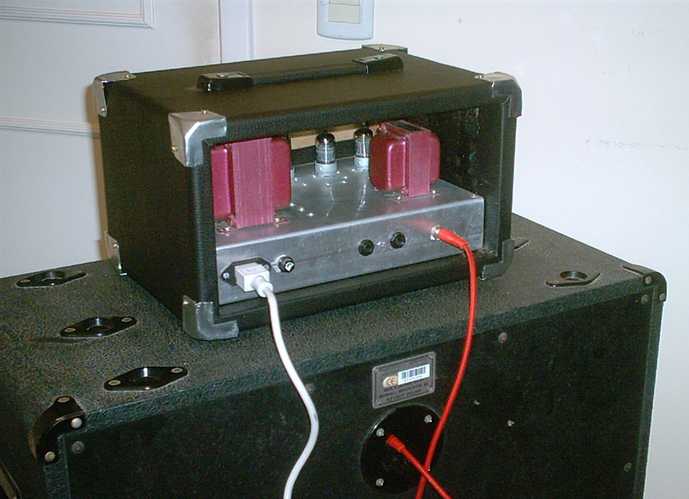

Back view. From left to right: power cord, fuse, pre-out, power-in and
speaker output.
|

|
|
The power (TFS200)
and speaker (TS8-A)
transformers are built by Lynx Audio - Valve Amplification.
Special thanks to Mr. Guilherme Peregrini from Lynx Audio
for his great help.

|
