Haroldo Gamal's JCM 800 15 watts - Tube Amplifier

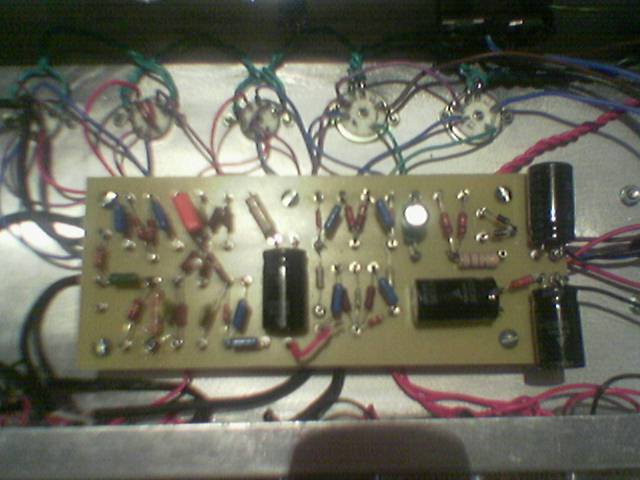

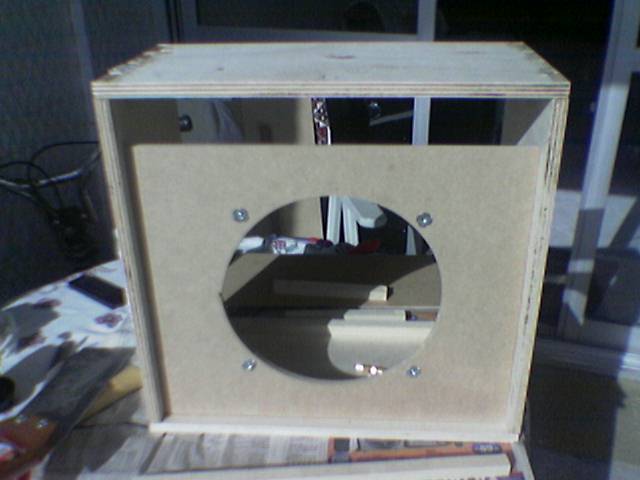

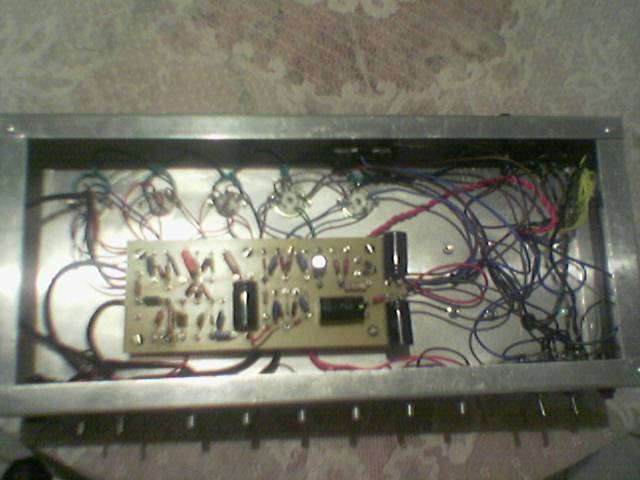

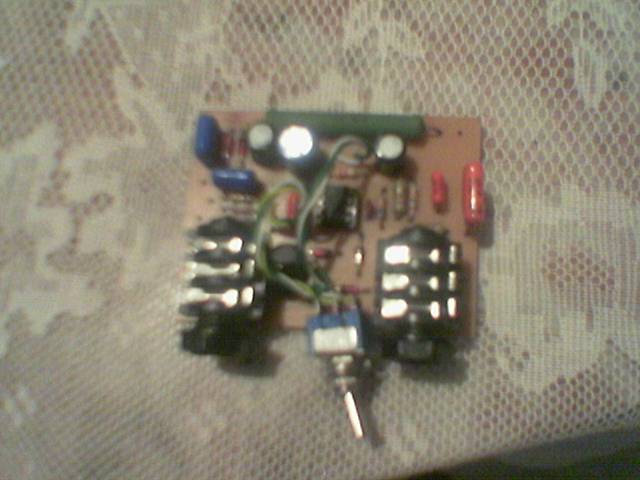

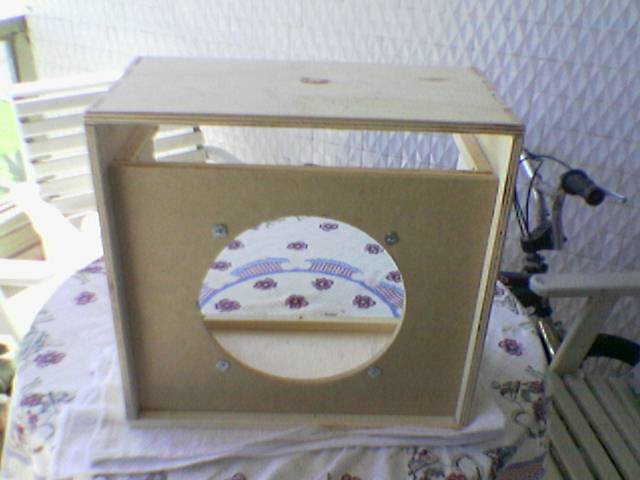

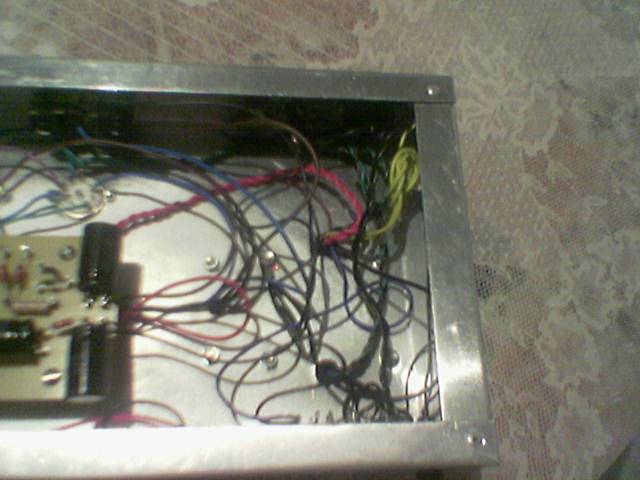

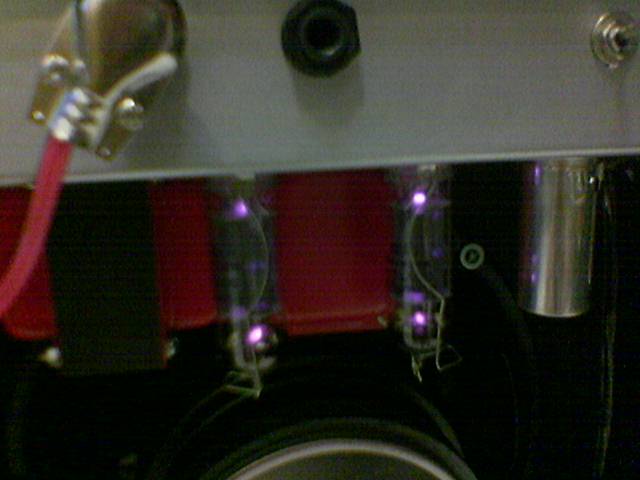

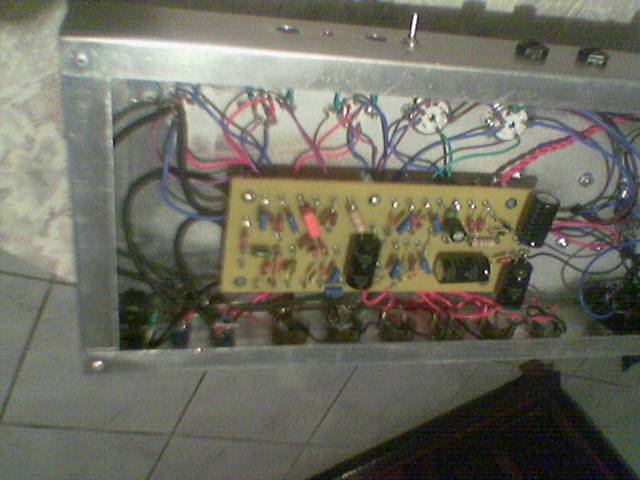

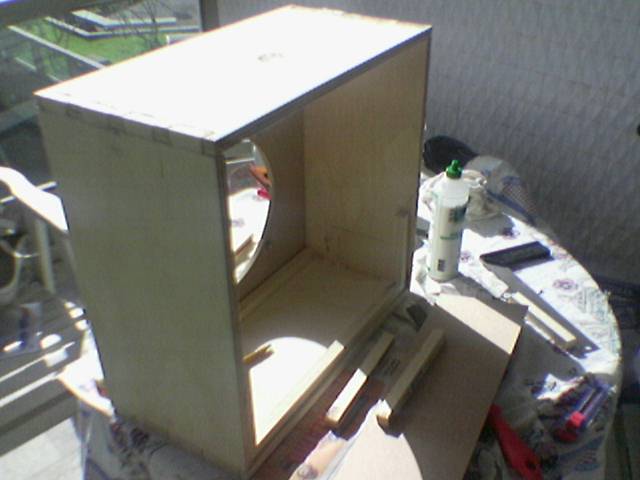

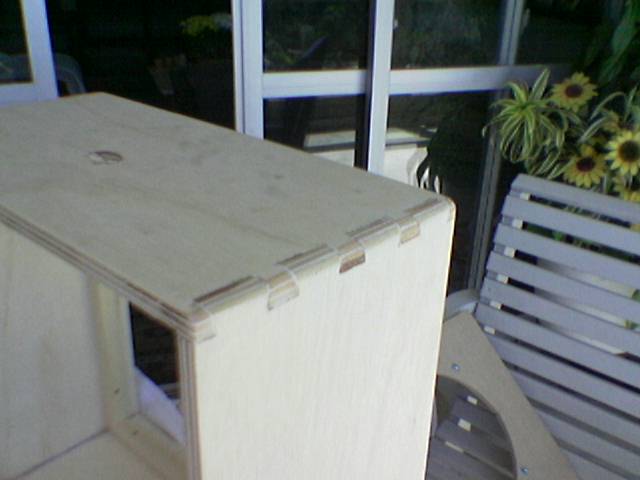

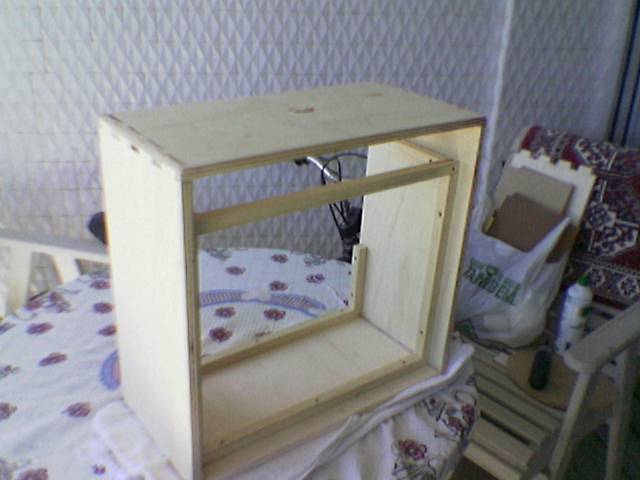

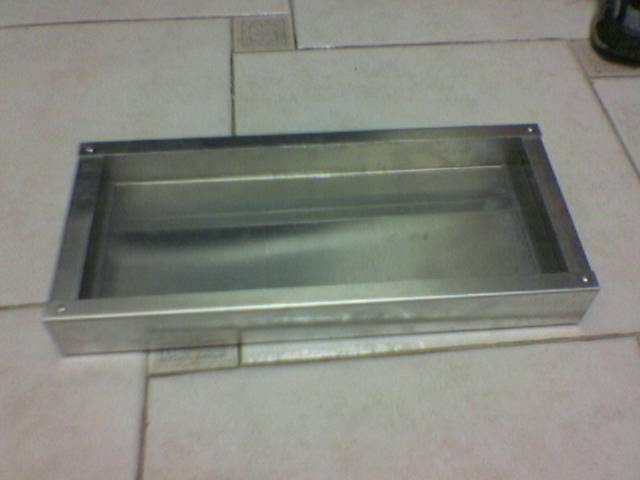

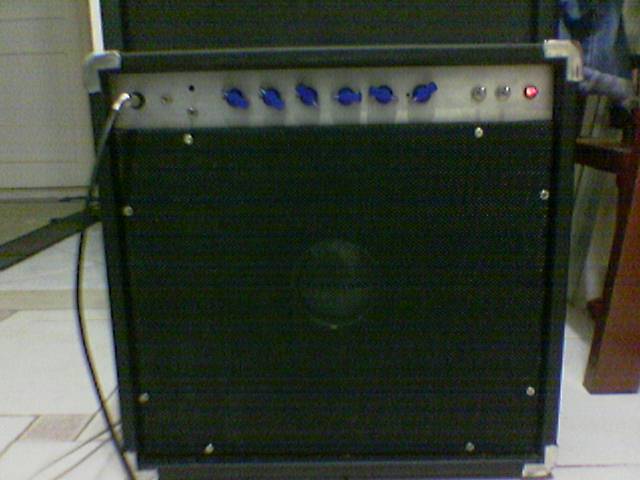

It is a combo (not finished yet), JCM 800 pre and 15 watts power (silicon rectifier).

Schematics

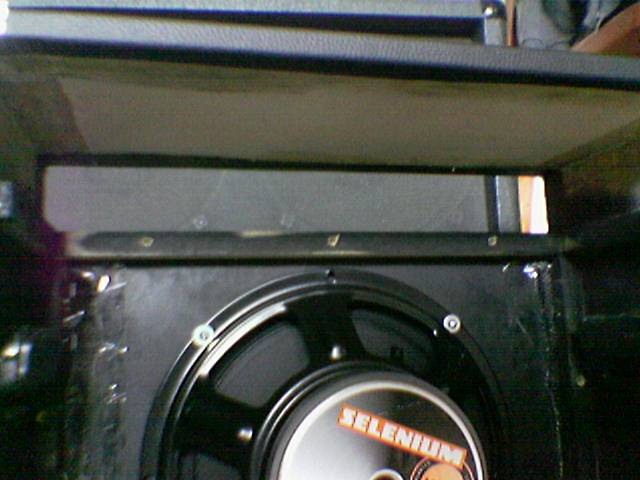

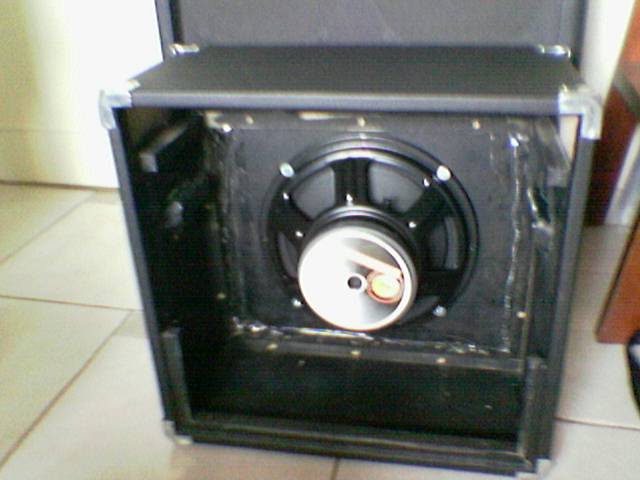

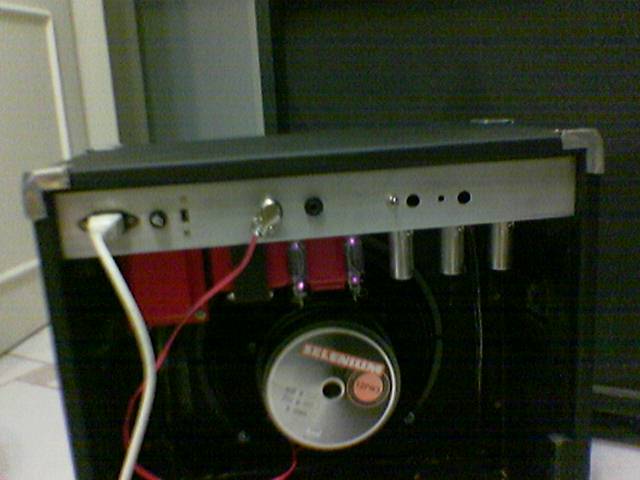

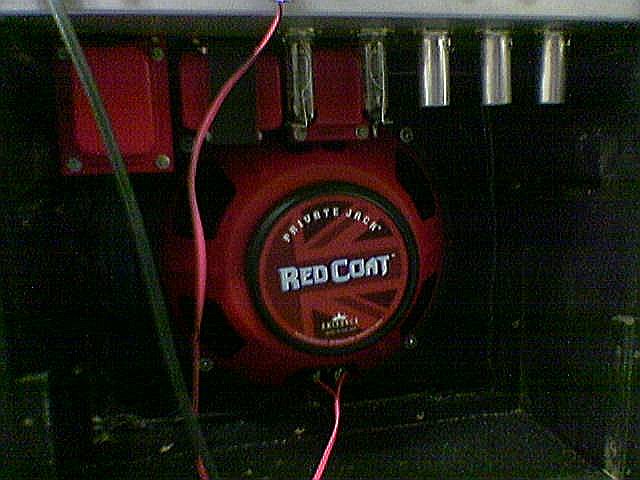

Feb. 2 - I have changed the Selenium 12PW3 speaker by a Eminence Private Jack TM

I am sorry for the bad pictures

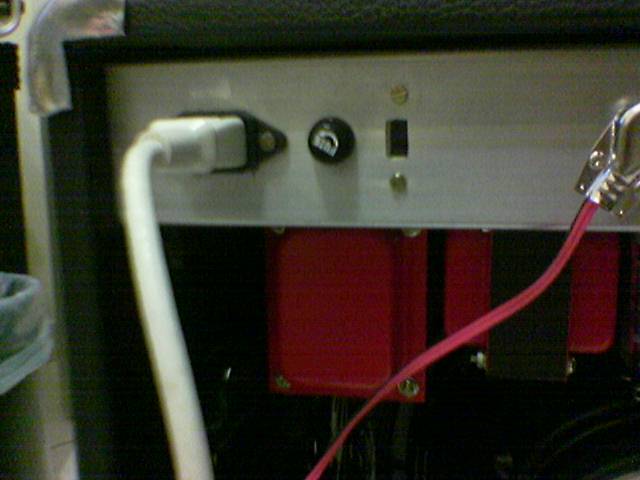

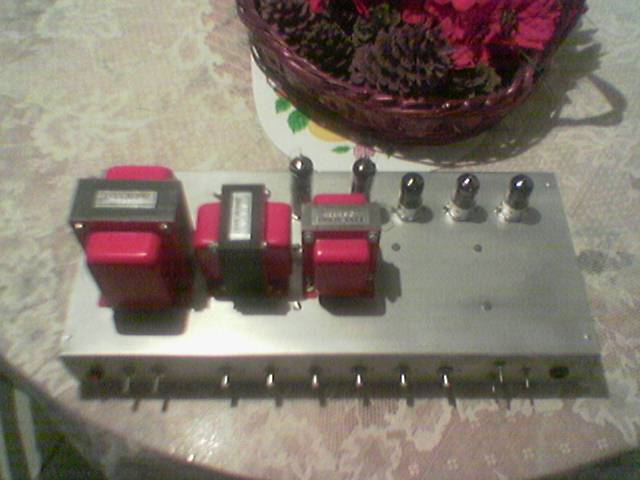

The power (TFS330), speaker (TS15-A) and choke (C8H120) transformers are built by Lynx Audio - Valve Amplification.
Special thanks to Mr. Guilherme Peregrini from Lynx Audio for his great help.
